What does the HD Endoscope Camera System include: endoscope, endoscope optical interface, camera and endoscope camera host, cold light source, monitor, etc.
An endoscope is a medical device that consists of a bendable part, a light source, and a set of lenses. The imaging structure is classified into rigid tube endoscopes, optical fiber (tube type) endoscopes and electronic endoscopes. According to the function: endoscopy of the digestive tract: esophagoscopy, gastroscopy, duodenoscope, etc.; endoscopes of the respiratory system: laryngoscope, bronchoscope, thoracoscopy, etc.; endoscopy of the peritoneal cavity: laparoscopy Biliary endoscope: choledochoscope; urinary endoscope: cystoscope, ureteroscope, nephroscope, etc.; gynecological endoscope: hysteroscope; joint endoscope: arthroscope; and ear Speculum, nasal endoscope, etc.;
The optical interface of the endoscope is the imaging adapter part connecting the hard tube lens and the camera. It adopts the international standard C-mount, which can be connected with imported domestic hard mirrors and some soft mirrors, and the target is imaged to the camera through the internal optical system. On the device (CCD/CMOS), the target image is output through the display device. The focusing hand wheel can accurately adjust the focus of the optical imaging system to make the output image clear and sharp.
The endoscope camera is equivalent to a substitute for the human eye. It detects places that the human eye cannot observe. At present, most endoscope cameras use CMOS image sensors, which are very fast and do not require complicated processing procedures. The images can be directly presented in On the monitor.
The function of the endoscopic camera is to guide light, to guide the light from a strong external light source into the organ to illuminate the examination site; the second is to guide the image, to conduct the image that reflects the endoscopic situation of the organ, and through the monitor, it is convenient for the doctor to observe the clear details The intracavitary tissue provides protection for doctors' safe operation and delicate operation.
The cold light source of the endoscope is used in the clinical use of the endoscope, providing it with a peeping light source with good illumination and clear imaging, which can provide good illumination during the inspection, treatment, surgery, and photography and video recording of the internal organs of the human body. At present, the more common cold light sources on the market are LED and xenon lamps; LED cold light sources have gradually replaced traditional halogen lamps and xenon lamps, which greatly saves costs for hospitals and provides early protection for long-term operations. The service life can reach 50,000 to 60,000 hours, which is more than 10 times longer than that of traditional light sources. It has the characteristics of no pollution, high brightness, long service life and high conversion rate.
The endoscope display can truly restore organs, blood vessels and other human tissues, helping doctors perform better operations;

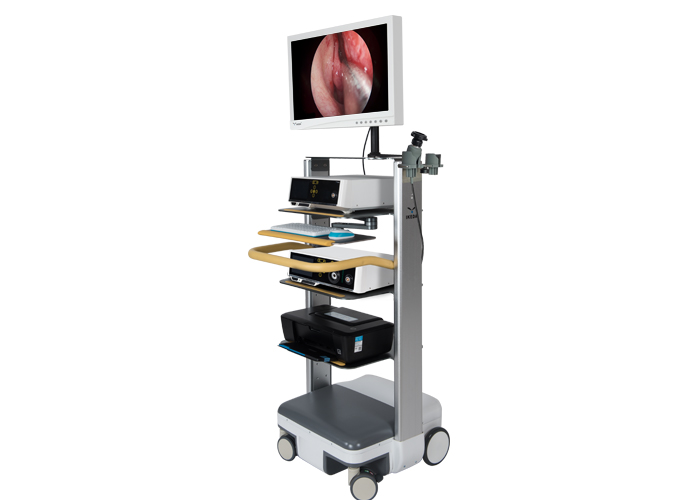

The high-definition endoscope camera system mainly consists of the above parts, and sometimes includes a multi-layer trolley, which places various equipment required for endoscopic minimally invasive surgery.
