1. High-performance I/P conversion
2. Bright color separation deep compensation
3. Environmentally friendly LED backlight
4. Dynamic dark area color reconstruction technology
5. Over Drive accelerates response and eliminates screen smear
6. Digital image transient enhancement technology
7. Unique white balance automatic adaptation technology
8. Gamma value adjusted one by one before leaving the factory
9. Personalized three primary color adjustment permissions
10. Operate custom screen ratio adjustment between different modes
Product Parameters

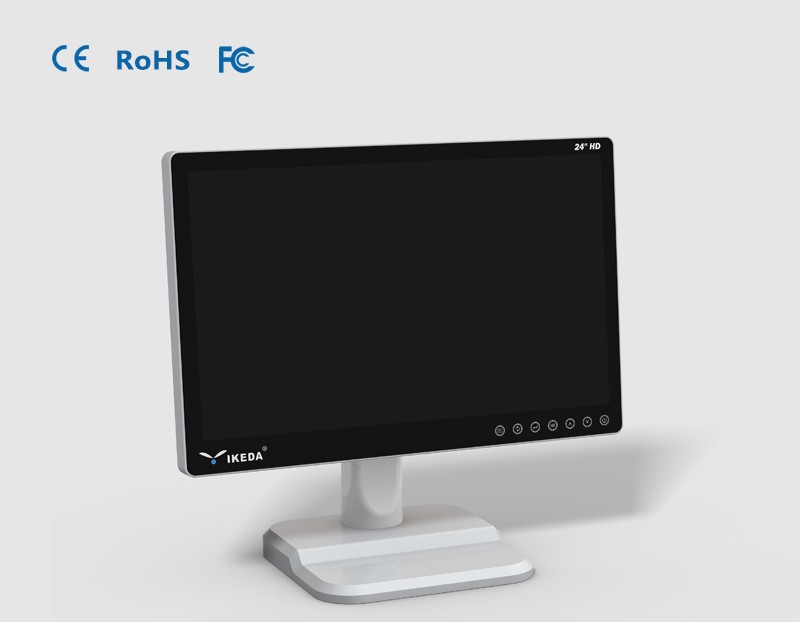

Monitor Size | 24" |
Model | YKD-8024 |
Colour&Material | White & metal |
power supply | 12V/8.5A |
Image size (Horizontal*Vertical) | 1920x1080 |
ratio | 16：9 |
Default brightness | 500±20% |
Highest brightness | 600 |
Contrast | 1000:1 |
Display color | 16.7M 6bit |
| Response time(/ms) | 14ms |
Perspective | 178/178 |
Product Size | 570（W）x345(H)x65(D)mm (Without base) |
MTBF | ﹥50,000 hours |
Signal interface | DVI/VGA/CVBS/S-VIDEO |
application | Endoscope/electronic gastrointestinal endoscopy, laparoscopy |
Default color temperature | 6500K |
Color gamut | 72% NTSC（sRGB) |
Brightness uniformity | >75% |
scanning frequency | 50HZ-75HZ |
Accessories (wire) | DVI |
Backlight module | LED |
